Coil Ignition, Restoration Plus Series, 1968 Chrysler

Black, All 6 Cylinder And V8 With Breaker-Point Type Ignitions Or Aftermarket Electronic Ignition Conversion Kits, Non Printed Version With No Date Code

Note: Replacement For Original Chrysler Essex Type Coil 2444241. See Catalog For Date Code Specific Coils.

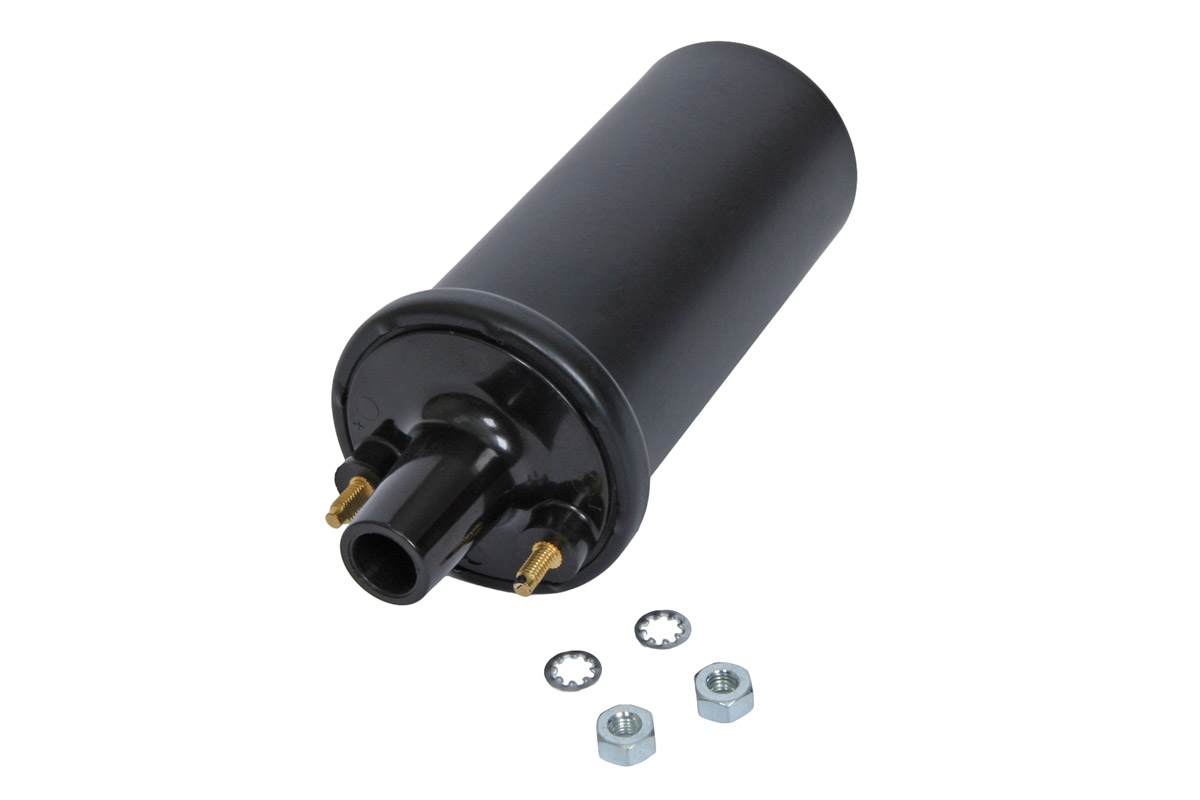

Restoration Plus Series premium black 12 volt ignition coil for Chrysler 6-Cylinder and V8 applications with breaker-point type ignitions or aftermarket electronic ignition conversion kits. Built like the originals and engineered beyond them, this coil maintains an OEM-style appearance while using upgraded internal construction for improved durability, heat dissipation, insulation integrity, and high-voltage reliability. Designed as a compatible replacement for the original Chrysler Essex type coil part number 2444241 and original coils with primary resistance in the 1.2 to 1.8 ohm range. This is the non-printed version with no date code and is ideal when a plain service replacement coil is desired. Fits existing original-style coil brackets. See catalog for date code specific coils.

Features and Specifications:

• Heavy-gauge oil-filled steel housing
• Premium magnetic core materials
• Precision CNC primary winding
• Advanced seven-section bobbin secondary winding
• Brass high-voltage and primary terminals for excellent conductivity and corrosion resistance
• Primary Resistance @25 C: 1.25 to 1.35 ohms
• Primary Inductance @25 C: 7.5 to 8.5 mH
• Secondary Resistance @25 C: 7.0 to 8.0 k ohms
• Secondary Inductance @25 C: 50 to 60 H
• Available Voltage: 36 kV under load*

*Society of Automotive Engineers, Ignition System Measurements Procedure, SAE Recommended Practice J973a, Warrendale, PA: SAE, 1973.

Instructions

M&H Part Number: 40093

Summit Racing Part Number: SUM-RP80585

$60.00
